Self-Hosting Tesseral

Tesseral is an open-source project that you can self-host on your own infrastructure. This document describes how you can do that.

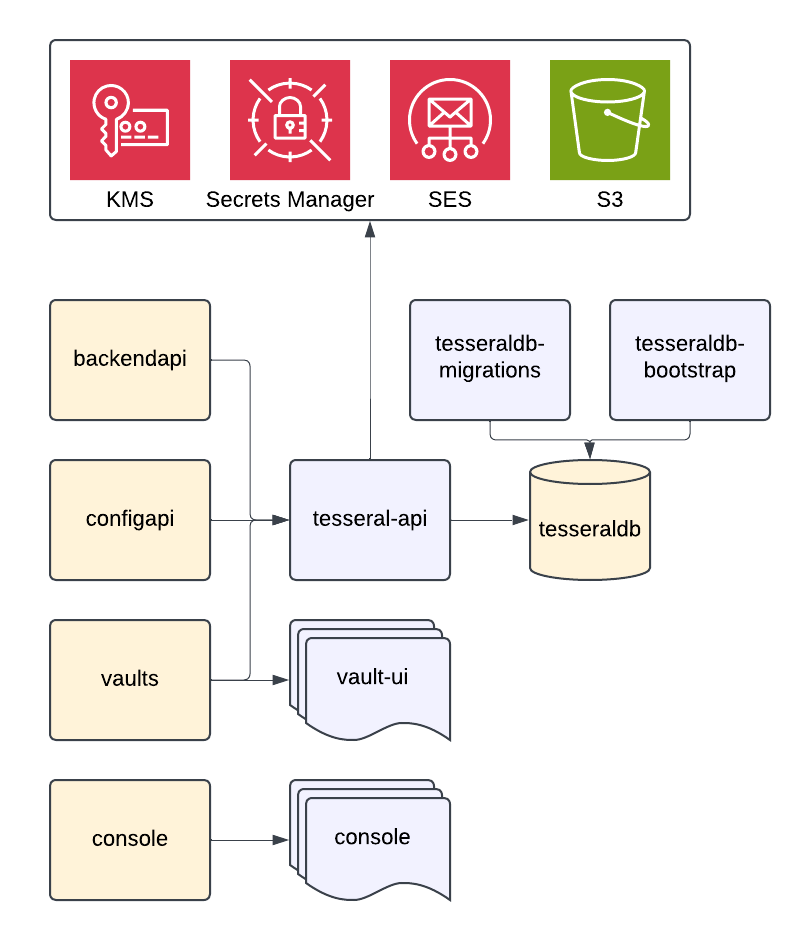

Tesseral Architecture

Tesseral provides four artifacts that you can self-host:

• tesseral-api is a binary that represents the entire Tesseral backend codebase.

• vault-ui is a set of HTML, CSS, and JavaScript for the UI elements of Vaults.

• console is a set of HTML, CSS, and JavaScript for the Tesseral Console.

• tesseraldb-migrations is a set of database migrations for the Tesseral database.

• tesseraldb-bootstrap is an initialization script to initialize the Tesseral database after migrating it.

When you deploy Tesseral, you are responsible for managing the following infrastructure:

• backendapi is the Tesseral Backend API, a reverse proxy that talks to tesseral-api. The hosted version of Tesseral runs this at api.tesseral.com.

• confgapi is the Tesseral Config API, a reverse proxy that talks to tesseral-api. The hosted version of Tesseral runs this at config.tesseral.com.

• vaults is the set of Tesseral Project Vaults, each of which is a reverse proxy that talks to tesseral-api or serves the vault-ui SPA, depending on the request path.

• console is a the Tesseral Console, a reverse proxy that serves the console SPA.

• tesseraldb is a PostgreSQL database.

The rest of this section describes these components in greater detail.

To follow these instructions, you must get a copy of the Tesseral source code, available from GitHub at:

https://github.com/tesseral-labs/tesseral

AWS Infrastructure

Tesseral requires a set of AWS services. You do not need to run tesseral-api or any other software component of Tesseral in AWS, but you do need to ensure tesseral-api has access to the following AWS services:

• AWS Secrets Manager is optional but strongly recommended as a place to keep any secret environment variables tesseral-api requires.

• AWS Key Management Service is a required, and is used to encrypt session signing keys and OAuth client IDs.

• Amazon Simple Email Service is required for sending email verification codes to end users.

• Amazon S3 is required for storing user content, such as Project logos.

tesseral-api

tesseral-api is distributed as a binary, written in Golang. To build this binary for your operating system and architecture, you must first install Golang and then run:

$
# set GOOS and GOARCH as appropriate
>
go build -o api ./cmd/api

This will produce an api binary. For documentation on the environment variables api takes, run api --help. The most important environment variables are:

vault-ui

vault-ui is distributed as a set of static files. To build these files, run:

$
cd vault-ui
>
npm ci
>
npm run build

This will produce the files to serve to vault-ui/public.

console (Single-Page Application)

console is distributed as a set of static files. To build these files, you will first need to run tesseral-bootstrap. Then run:

$
cd console
>
npm ci
>
>
# Replace project_... with the project ID outputted by tesseral-bootstrap
>
CONSOLE_DOGFOOD_PROJECT_ID=project_... npm run build

This will produce the files to serve to console/public.

tesseraldb-migrations

To prepare the database tables in tesseraldb, you will need to install golang-migrate. Then run:

$
migrate -path cmd/openauthctl/migrations -database "postgres://..." up

Where postgres://... is a connection string to tesseraldb.

tesseral-bootstrap

After having run tesseraldb-migrations, you must run tesseral-bootstrap to initialize a “dogfood” project. This is a special initial project that Tesseral uses to authenticate users of the Tesseral Console.

$
go run ./cmd/openauthctl bootstrap \
>
  --database "postgres://..." \
>
  --root-user-email "root@example.com" \
>
  --session-kms-key-id "..." \
>
  --console-domain "..." \
>
  --vault-domain "..."

For these parameters:

• Have --database point to tesseraldb.

• Have --root-user-email be an email address you have access to.

• session-kms-key-id should be the same value you use for API_SESSION_KMS_KEY_ID in tesseral-api.

• console-domain should be the same value you use for API_CONSOLE_DOMAIN in tesseral-api.

• vault-domain should be the domain name of the vault you want to use for the initial, dogfood project. This must be a subdomain of console-domain. In the hosted version of Tesseral, this is vault.console.tesseral.com.

backendapi

backendapi must be a reverse proxy (e.g. an nginx, a Cloudflare worker, an AWS Cloudfront distribution or API Gateway) that:

• Is available from the public internet.
• Serves HTTPS.
• Performs no caching.
• Forwards all requests to tesseral-api, but prepends /api/backend to all request paths.

As a non-normative starting point, an nginx configuration for this may look like:

server {
  location / {
    proxy_pass https://tesseral-api.example.com/api/backend/;
  }
}

configapi

configapi must be a reverse proxy (e.g. an nginx, a Cloudflare worker, an AWS Cloudfront distribution or API Gateway) that:

• Is available from the public internet.
• Serves HTTPS.
• Performs no caching.
• Forwards all requests to tesseral-api, but prepends /api/config-api to all request paths.

As a non-normative starting point, an nginx configuration for this may look like:

server {
  location / {
    proxy_pass https://tesseral-api.example.com/api/config-api/;
  }
}

vaults

Tesseral is multi-tenant software; every self-hosted deployment of Tesseral supports running multiple Projects at once. Every Tesseral Project has a Vault, and each of these Vaults (collectively referred to as vaults in this article) must point at the same reverse proxy.

How you achieve this architecture is up to you; in the cloud-hosted version, Tesseral operates a wildcard subdomain (*.tesseral.app) for “Tesseral-generated” subdomains, as well as a proxy supporting user-provided domains.

vaults must be a reverse proxy (e.g. an nginx, a Cloudflare worker, an AWS Cloudfront distribution or API Gateway) that:

• Is available from the public internet.
• Serves HTTPS.
• Forwards, without caching, all requests beginning in /api or /.well-known to tesseral-api.
• Serves a single-page application for all other requests, serving the contents of vault-ui. All 404s must serve index.html.

console (Reverse Proxy)

vaults must be a reverse proxy (e.g. an nginx, a Cloudflare worker, an AWS Cloudfront distribution or API Gateway) that:

• Is available from the public internet.
• Serves HTTPS.
• Serves a single-page application for all requests, serving the contents of vault-ui. All 404s must serve index.html.

tesseraldb

tesseraldb must be a PostgreSQL database or cluster, running version 16.4 or later. tesseraldb-migrations and tesseral-bootstrap both require one-off access to this database; thereafter, only tesseral-api needs to have network connectivity to this database.

Using Tesseral SDKs

Tesseral’s clientside and serverside SDKs default to using the cloud-hosted version of Tesseral. All of Tesseral’s SDKs support overriding this configuration to use your self-hosted instance instead.

For the Tesseral React SDK, override the configapi domain (default: config.tesseral.com) using the configApiHostname parameter on TesseralProvider:

1
<TesseralProvider configApiHostname="config.tesseral-self-hosted.example.com" publishableKey="publishable_key_...">
2
  <App />
3
</TesseralProvider>

For all backend SDKs, override the backendapi domain (default: api.tesseral.com) by providing an additional parameter when constructing a client instance:

1
const client = new TesseralClient({
2
  environment: "https://api.tesseral-self-hosted.example.com/",
3
  // ...
4
})
